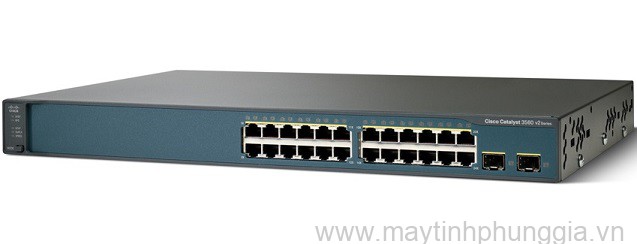

Sửa bộ chia mạng Switch CISCO Catalyst 3560 WS-C3560V2-24PS-S

Manufacturer

Cisco Systems, Inc

Manufacturer Part Number

WS-C3560V2-24PS-S

Product Type

Switch - 24 ports - L3 - Managed

Form Factor

Rack mountable - 1U

Switch Ports

24 x 10/100 + 2 x SFP

Power Over Ethernet (PoE)

Yes

MAC Address Table Size

12K entries

Routing Protocol

RIP-1, RIP-2, static IP routing

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c

Authentication Method

Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Features

Layer 3 switching, auto-sensing per device, DHCP support, auto-negotiation, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Intrusion Detection System (IDS), MAC address filtering, IPv6 support, Spanning Tree Protocol (STP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR)

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s

Flash Memory

32 MB Flash

LED Status Lights Indicators

Port status, link activity, port transmission speed, port duplex mode, system, RPS (Redundant Power Supply)

Connectivity Slots

Interfaces

24 x 10Base-T/100Base-TX - RJ-45 - PoE

1 x console - RJ-45 - management

2 x SFP (mini-GBIC)

Power Supply

Power Device

Power supply - internal

Compliant Standards

CE, GOST, CISPR 24, NOM, EN55024, EN55022 Class A, CISPR 22, EMC, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A

Voltage Required

AC 120/230 V ( 50/60 Hz )

Features

Redundant Power System (RPS) connector

MTBF

275,360 hour(s)

Dimensions

44.3 x 29.5 x 4.4 cm

Weight

4.6 kg
