Sửa bộ chia mạng Switch CISCO Catalyst 3560 WS-C3560X-24T-E

Mã SP: | Lượt xem: 180 lượt

Sửa bộ chia mạng Switch CISCO Catalyst 3560 WS-C3560X-24T-E tại Phùng Gia

Kho hàng: Còn hàng

Bảo hành:

Giao hàng: Phí giao hàng và cài đặt : 30.000 VNĐ (Trong phạm vi 8km).

Khuyến mại:

Giá: Liên hệ

Số lượng

Đặt mua ngayNhanh chóng, thuận tiện

Bạn cần mua bán sửa chữa bảo hành hãy gọi ngay vào Hotline để được tư vấn trực tiếp về sản phẩm

Ms. Thu Hoa

0949.51.3333

Mr. Thái

0975.39.3333

Mr. Vinh

0942.17.3333

Chi tiết sản phẩm

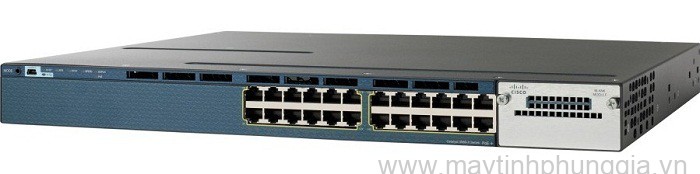

Sửa bộ chia mạng Switch CISCO Catalyst 3560 WS-C3560X-24T-E

Thông số sản phẩm

Sửa bộ chia mạng Switch CISCO Catalyst 3560 WS-C3560X-24T-E uy tín tại Phùng Gia

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	WS - C3560X - 24T - E
Product Type	Switch - 24 ports - L3 - Managed
Form Factor	Rack mountable - 1U
Switch Ports	24 x 10/100/1000 Ethernet Ports Ethernet Ports
Performance	Switching capacity: 160 Gbps
Routing Protocol	RIP-1, RIP-2, HSRP, static IP routing, RIPng, OSPF, EIGRP, BGPv4, and IS-ISv4.
Remote Management Protocol	SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Authentication Method	Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features	Hot swap module replacement, Layer 3 switching, Layer 2 switching, dynamic IP address assignment, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), EIGRP Stub Routing, Policy-based routing (PBR), Protocol Independent Multicast (PIM),Virtual routing and forwarding (VRF)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae
DRAM Memory	256 MB
Flash Memory	128 MB Flash
Status Indicators	Port status, link activity, port transmission speed, port duplex mode, power, system
Connectivity Slots
Interfaces	24 x 10Base-T/100Base-TX/1000Base-T - RJ-45
	USB: 1 x 4 PIN USB Type A
	1 x console - mini-USB Type B - management
	1 x RS-232 - RJ-45 - management
	1 x 10Base-T/100Base-TX - RJ-45 - management
Expansion Slot(s)	1 (total) / 1 (free) x Expansion Slot
Power Supply
Power Device	Power supply - redundant - plug-in module
Installed Qty	1 (installed) / 2 (max)
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Voltage Required	AC 120/230 V ( 50/60 Hz )
Features	Redundant Power System (RPS) connector
Dimensions / Weight / Miscellaneous
Dimensions	44.5 x 46 x 4.5 cm
Weight	7 kg
