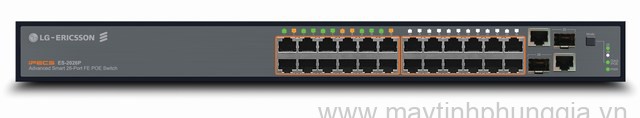

Sửa 24 port PoE Managed Switch LG-ERICSSON ES-2026P

–      802.1d : Spanning tree protocol (STP)

–      802.1w : Rapid Spanning Tree Protocol (RSTP)

–      Max number of groups: 12

–      Max number of members per group: 8

–      Source & Destination MAC based Load balance

–      VLAN IDs:4096

–      Max Number of active VLANs per Switch: 128

–      Link Layer Discovery Protocol (802.1ab)

–      Snoop IGMP packets per VLAN

–      Max Number of multicast groups: 128

–      QoS on L3 using TOS field of IP packet header

–      DSCP to 802.1p mapping

–      QoS on L2 layer using TCI field of VLAN header

–      Strict Priority Queuing

–      Weighted Round Robin Queuing

–      Voice VLAN / Auto QoS

–      L2/L3/L4 based ACL (Max number of ACL: 512)

–      Full/Half Duplex, Back pressure for half duplex

–      Port, all traffic by bps

–      Broadcast -packet rate control

–      Multicast -packet rate control

–      RADIUS / TACACS+ Authentication and Accounting

–      Port based Authentication

–      MAC limitation per Port

–      MAC based port security (Static/Dynamic)

–      HTTP, HTTPS

–      SNMP v1/v2c/v3, Trap (RFC 1215)

–      TCP/IP-based internets (RFC1213)

–      RMON v1/2 (RFC2819/RFC4502)

–      Received traffic

–      Transmit traffic

–      Received and Transmit traffic

–      N to 1 Mirror

–      SNTP

–      Configuration backup / restore

–      Firmware backup / upgrade

–      IP Clustering up to 36 switches

–      Switching Fabric Capacity (Gbps): 8.8

–      Packet Forwarding Throughput (Mpps):6.6

–      Flash Memory : 16M

–      DRAM:128M

–      MAC Address Capacity : 8K

–      MTU / Jumbo Frames support : 10K

–      Auto-negotiation, Auto-MDI/MDIX: Yes

–      Reset button (rear panel): Yes

–      MTBF (Hours): 150,000

–      Type of Service ports :10/100Base-TX

–      10/100Base-T Ports per Unit: 24

–      Type of Built-in Gigabit uplink ports: 2 pair combo RJ45/SFP

–      Types of GBIC and SFP support: SFP (SX, LX, LH, FX)

–      Management Console ports (Connector): RJ45

–      POE Support on all ports based on 802.3af:Yes

–      POE+ support based on 802.3at: Yes (port 1~6)

–      POE Power Indication and safety: Yes

–      Auto disable on the excess of total power: Yes

–      Dynamic Power Allocation: Yes

–      POE Power Budge: 185W

–      19” Rack Mount: Yes

–      Height (mm): 44

–      Width (mm): 440

–      Depth (mm): 280

–      Weight (Kg): 4.3

–      100 ~ 240 VAC, 50/60Hz, 3Pin: Yes

–      Max power consumption (Watts): 245
